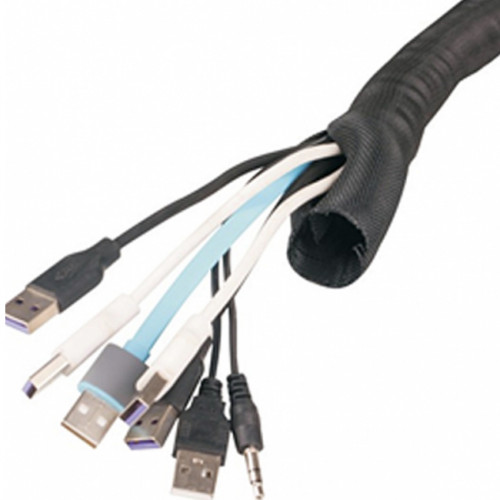

PET-SWFS self-winding fabric braided sleeve

Cable wraparound sleeve from polyester threads (polyethylene-terephthalate, PET) has ability to self-wind into tube by the force of tension of specially waved threads.

Usage: self-winding cable sleeve is used for mechanical wires, cables, hoses protection from rubbing, different mechanical damages and cuts, also for their management (laying and distribution), cable bundles formation. Self-winding construction of the sleeve provides comfort in formation of cable bundles and their service after. Keeping wires and cables tight, firm sleeve additionally helps to avoid vibration of bundle components. Braided sleeve can be used multiply, easily demounted and re-mounted on cable bundles or their parts. The sleeve has good flame resistance, abrasion resistance, softness, environmental resistance, reasonable resistance to aggressive chemical substances, including mineral oil that allows to use sleeve for protection of wires, hoses in industrial production of electric equipment and various mobile transport: lift and escalator systems, railway rolling stock, automobile manufacturing, aviation, construction equipment.

Package: Sleeve is supplied in spools of 25-100m (depending on diameter). Rolls can be put on carton spools and packed in cartons / package film / plastic bags.

Storage: in clean, dry rooms in the supplier's packaging or in cardboard boxes, at a relative humidity of up to 70%, at temperatures from -10°C to +50°C, avoiding sudden temperature changes and exposure to direct sunlight. The distance to any heating sources should be at least 1 meter (without exceeding the maximum storage temperature). Storage conditions should exclude the influence of aggressive medium: acids, alkalis, fuels and lubricants, solvents, etc. The shelf life is at least 12 months from the date of shipment subject to storage conditions. Operational life: not less than 5 years.

Certification: Not subject to mandatory certification.



Basic technical specifications:

Material

Monofilament and multifilament yarn (polyethylene-terephthalate, PET polyester)

Operational temperatures range

from -50°С to +150°С

Braid melting temperature

> 200°С

Flammability

Flame retardant. Class of flammability not worse than UL94-V2

Basic color

Black (other colors upon request)

Size range

ID from 3,0 to 50mm in free-rolled state

Recommended method of cut

Hot cut



Table 1. Sizes of braided sleeve

Size

Approx. sleeve ID in free rolled, mm

Recommended bundle diameter

Quantity in roll, m

Min, mm

Max, mm

5

5,0

3,0

6,0

50

8

8,0

5,0

9,0

50

10

10,0

8,0

11,0

50

13

13,0

10,0

14,0

50

15

15,0

13,0

17,0

50

19

19,0

16,0

20,0

25

25

25,0

22,0

27,0

25

29

29,0

26,0

31,0

25

32

32,0

29,0

34,0

25

38

38,0

32,0

40,0

25

50

50,0

44,0

52,0

25
