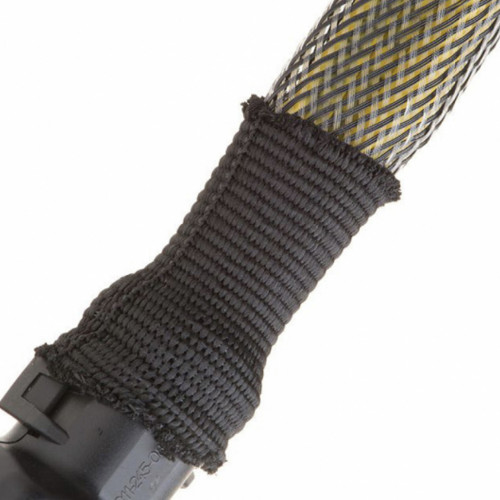

PET-HSS heat-shrinkable fabric braided sleeve.
Cable wraparound sleeve from polyester and polyolefin threads in form of the sleeve that has ability to shrink under high temperatures same way like heat-shrinkable tubes.
Usage: Heat-shrinkable cable sleeve is used for mechanical protection, additional electric isolation and reliable protection of the wires, cables, hoses, fittings from abrasion, bending, different mechanical damages and cuts, also for their management (laying and distribution), cable bundles formation. Textile sleeve from polyester (PET) and polyolefin threads is able to shrink 2 times under high temperature. Heat-shrinkable construction of cable sleeve provides comfortable formation of cable bundles and their service afterwards. Tying the wires and cables, soft sleeve additionally helps to avoid vibration of bundle components. Unlike other cable sleeves, it is single-use item and can’t be demounted without damage of the sleeve. The sleeve has good flame resistance, abrasion resistance, softness, environmental resistance, reasonable resistance to aggressive chemical substances, including mineral oil that allows to use sleeve for protection of wires, hoses in industrial production of electric equipment and various mobile transport: lift and escalator systems, railway rolling stock, automobile manufacturing, aviation, construction equipment.
Package: Sleeve is supplied in spools of 25-400m (depending on diameter). Rolls can be put on carton spools and packed in cartons / package film / plastic bags.
Storage: in clean, dry rooms in the supplier's packaging or in cardboard boxes, at a relative humidity of up to 70%, at temperatures from -10°C to +50°C, avoiding sudden temperature changes and exposure to direct sunlight. The distance to any heating sources should be at least 1 meter (without exceeding the maximum storage temperature). Storage conditions should exclude the influence of aggressive medium: acids, alkalis, fuels and lubricants, solvents, etc. The shelf life is at least 12 months from the date of shipment subject to storage conditions. Operational life: not less than 5 years.
Certification: Not subject to mandatory certification.
Basic technical specifications:
|
Material |
Polyethylene-terephthalate threads + threads from polyolefin composition |
|
Operational temperatures range |
from -50°С to +150°С |
|
Shrinking ratio |
2:1 |
|
Shrinking temperature |
from +150°С to 200°С |
|
Flammability |
Flame retardant. Class of flammability not worse than UL94-V2 |
|
Basic color |
Black |
|
Size range |
ID from 8,0 to 100mm before shrink |
|
Recommended method of cut |
Hot cut |
Table 1. Sizes of braided sleeve
Size |
ID, mm |
Recommended bundle diameter, mm |
Quantity in roll, m |
|
|
Before shrink, min |
After shrink, max |
|||
|
8/4 |
8,0 |
4,0 |
4-6 |
400 |
|
12/6 |
12,0 |
6,0 |
6-9 |
400 |
|
20/10 |
20,0 |
10,0 |
10-15 |
300 |
|
25/12,5 |
25,0 |
12,5 |
12,5-18 |
300 |
|
30/15 |
30,0 |
15,0 |
15-22 |
300 |
|
34/17 |
34,0 |
17,0 |
17-25 |
300 |
|
40/20 |
40,0 |
20,0 |
20-30 |
250 |
|
50/25 |
50,0 |
25,0 |
25-37 |
200 |
|
55/27,5 |
55,0 |
27,5 |
27,5-43 |
150 |
|
60/30 |
60,0 |
30,0 |
30-45 |
150 |
|
70/35 |
70,0 |
35,0 |
35-52 |
100 |
|
80/40 |
80,0 |
40,0 |
40-60 |
100 |
|
90/45 |
90,0 |
45,0 |
45-67 |
50 |
|
100/50 |
100,0 |
50,0 |
50-75 |
50 |
