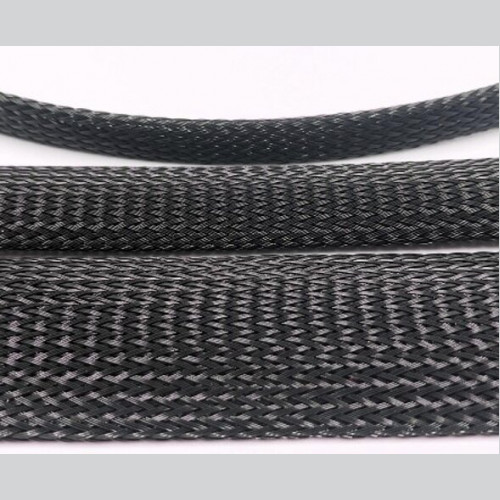

PET-ES expandable braided sleeve
Material: environment-friendly polyester monofil (PET, PA6, PA66, PPS).
Operational temperature: from -55 °С to + 150 °С;
Color: standard color – black, various colors and patterns upon request
Product description: PET expandable braided sleeve PET-ES – polyester sleeve for mechanical wires protection from rubbing and cuts. Wide range of operational temperature provides wide applications. Flame-retardant components allow to use sleeve in industrial production of railroad transport, automobile industry and aviation in accordance with international standards requirements.
Characteristics:
- Due to the wide range of expansion, it provides fast and easy formation of twists
- Net ribbon from polyether threads;
- Light weight, small volume;
- High flexibility;
- Gasoline, diesel and oil resistance;
- 100% recyclable;
- Operational temperatures from -55°С to +150°С;
- Flame-retardant, self-extinguishing;
Basic technical specifications:
|
Parameters |
Test method |
Data |
|
Rubber resistance |
LV 312-3 (ISO 6722) |
>= 5.000 cycles (E-class) |
|
|
PSA 9645870999E |
>= 7.000 cycles (class 4) |
|
|
GME 8618 |
144.000 cycles |
|
Flame-retardancy |
FMVSS 302 (DIN 75200) |
self-extinguish (Category B) |
|
|
|
Flammability (class S4) |
|
|
DIN 5510-2 |
Spreading of smoke and gas (class SR2) |
|
|
|
Level of drop formation (class ST2) |
|
Shrinking |
ISO 6722 |
<= 4% |
|
Impact performance |
PSA D421245 |
Нет повреждений (C/200/50/-30°C) |
|
|
LV 312-3 |
Нет повреждений (700/1200g with –40°C) |
|
Smoke-gas toxicity |
NF F 16-101 NF F 16-102/STM-S-001 |
F2 |
|
|
DIN 5510-2 (DIN EN ISO 5659-2) |
Fulfilled (Supplement C) |
|
Oxygen index |
NF F 16-101/NF F 16-102/STM-S-001 |
I2 |
|
Heat aging |
LV 312-2 |
Fulfilled (240 hrs. with 175°C) |
Guaranteed storage life - 5 years
Guaranteed operational time – 3 years
Service time - 5 years
Size range:
|
Size |
Width in flat, mm |
Approximate ID in free state, mm |
Approximate range of expanding: ID минимум / максимум, мм |
Length in roll, m |
|
PET-ES 3 |
3,0 |
> 0,95 |
2 - 7 |
500 |
|
PET-ES 4 |
4,0 |
> 1,5 |
2,5 - 10 |
500 |
|
PET-ES 6 |
6,0 |
> 2,8 |
4 - 13 |
500 |
|
PET-ES 8 |
8,0 |
> 4,0 |
5 - 16 |
500 |
|
PET-ES 10 |
10,0 |
> 5,3 |
7 - 19 |
500 |
|
PET-ES 12 |
12,0 |
> 6,5 |
8 - 22 |
500 |
|
PET-ES 15 |
15,0 |
> 8,5 |
10 - 26 |
500 |
|
PET-ES 18 |
18,0 |
> 10,0 |
12 - 29 |
250 |
|
PET-ES 20 |
20,0 |
> 11,5 |
14 - 33 |
200 |
|
PET-ES 25 |
25,0 |
> 14,5 |
16 - 40 |
200 |
|
PET-ES 30 |
30,0 |
> 18,0 |
19 - 50 |
200 |
|
PET-ES 35 |
35,0 |
> 21,0 |
22 - 55 |
100 |
|
PET-ES 40 |
40,0 |
> 25,0 |
26 - 60 |
100 |
|
PET-ES 45 |
45,0 |
> 27,5 |
29 - 65 |
50 / 100 |
|
PET-ES 50 |
50,0 |
> 30,5 |
32 - 70 |
50 |
|
PET-ES 60 |
60,0 |
> 37,0 |
38 - 75 |
50 |
|
PET-ES 70 |
70,0 |
> 43,5 |
44 - 85 |
50 |
