MWG-6 Medium wall adhesive tube 6X

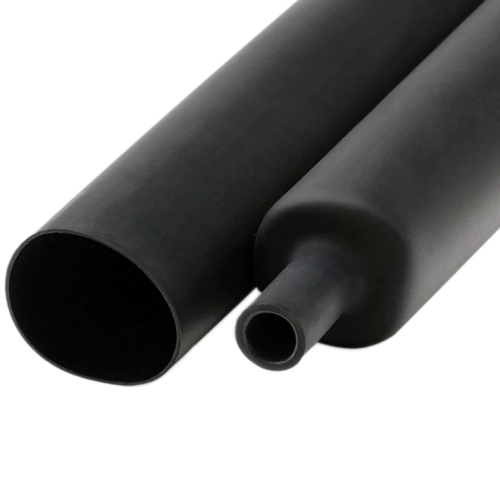

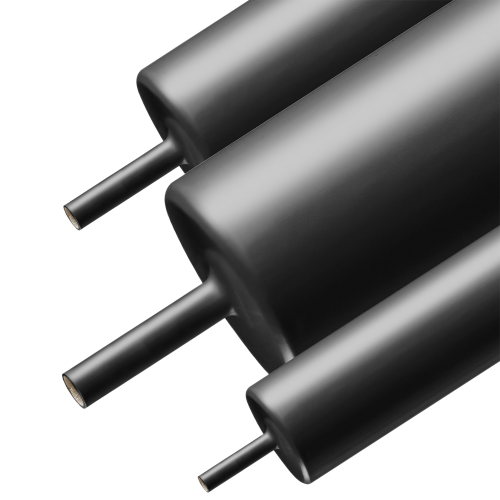

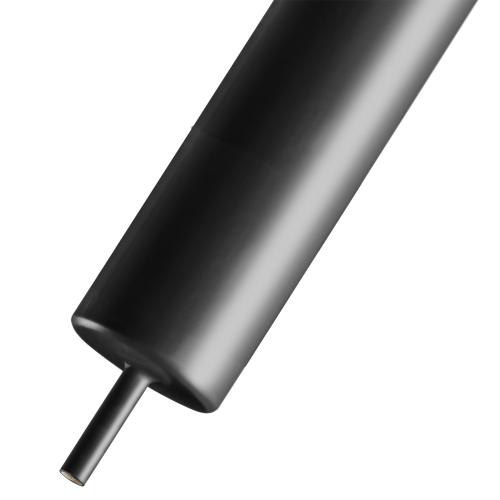

Heat-shrinkable tube MWG-6 with adhesive layer is a simple variant of universal heat-shrinkable tube from radiation-crosslinked polyolefin with standard technical characteristics and high shrink ratio (6:1) that allows to use tube to solve wide range of tasks.
Product name/designation: MWG-6 Medium wall adhesive tube 6X
Brief description: Heat-shrinkable tube MWG-6 with adhesive layer is a simple variant of universal heat-shrinkable tube from radiation-crosslinked polyolefin with standard technical characteristics and high shrink ratio (6:1) that allows to use tube to solve wide range of tasks.
Application: Tube MWG-6 seals cable input into asbestos, PE or metallic pipe and works as cable entry sealing. During cable routing is used as upper sleeve of joint kit. Adhesive layer hermetically seals the objects with big range of diameters, protecting them from moisture and corrosion. Can be used in many spheres of industry, energetics and electrotechnics. Has high mechanical strength and electro isolation properties. Non flame-retardant.
Package: Tube is supplied in pieces of 1m. Can be supplied without adhesive layer.
Storage: in clean, dry rooms in the supplier's packaging or in cardboard boxes, at a relative humidity of up to 70%, at temperatures from -10°C to +50°C, avoiding sudden temperature changes and exposure to direct sunlight. The distance to any heating sources should be at least 1 meter (without exceeding the maximum storage temperature). Storage conditions should exclude the influence of aggressive medium: acids, alkalis, fuels and lubricants, solvents, etc. Tubes with adhesive layer require storage in tight bags/boxes to avoid contamination of the adhesive layer of the tubes with dust and dirt inclusions of various origins, which can negatively affect the adhesion.
The shelf life is at least 2 years from the date of shipment subject to storage conditions.
Certification: Not subject to mandatory certification.
Basic technical specifications:
| Operating temperature> | from -50°С to +120°С |
| Shrink temperature | +200°С |
| Shrink Ratio | 6 : 1 |
| Base color | Black |
| Size range: | Inner diameter from 19 to 230mm |
| Electric strength, not less | 15 kV/mm |
| Breakout strength, not less | 10 MPa |
| Longitudinal shrinkage: | ≤ 10% |
Size range
| Size, mm | ID before shrink, mm | ID after full shrink | Wall thickness after shrink, mm |
| Ø 19 / 3.5 | ≥ 19,0 | ≤ 3,5 | 3±0,25 |
| Ø 33 / 6 | ≥ 33,0 | ≤ 6,0 | 3,5±0,25 |
| Ø 45 / 7.5 | ≥ 45,0 | ≤ 7,5 | 4±0,25 |
| Ø 51 / 8.5 | ≥ 51,0 | ≤ 8,5 | 4±0,25 |
| Ø 70 / 11.5 | ≥ 70,0 | ≤ 11,5 | 4±0,25 |
| Ø 90 / 17 | ≥ 90,0 | ≤ 17,0 | 4±0,25 |
| Ø 115 / 20 | ≥ 115,0 | ≤ 20,0 | 5±0,3 |
| Ø 130 / 20 | ≥ 130,0 | ≤ 20,0 | 5±0,3 |
| Ø 140 / 25 | ≥ 140,0 | ≤ 25,0 | 5±0,3 |
| Ø 160 / 26 | ≥ 160,0 | ≤ 26,0 | 5±0,3 |
| Ø 175 / 30 | ≥ 175,0 | ≤ 30,0 | 5±0,3 |
| Ø 230 / 40 | ≥ 230,0 | ≤ 40,0 | 5,5±0,3 |
