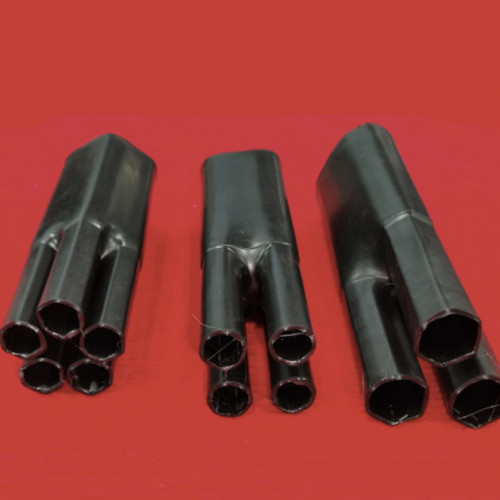

Heat-shrink breakout is used for hermitization and filling division core of multicore power cables, organization of cable lines input into the pipe and cable channels.

Application: Heat-shrink breakout is used for hermitization and filling division core of multicore power cables, organization of cable lines input into the pipe and cable channels. For usage in termination and joint cable kits up to 35kV for cables in PVC, paper-oil and PE isolation.

Description: Made from chemically modified PE with adhesive layer. Sealing adhesive layer on the inner side of body and fingers allows to place breakout indoors and outdoors. Hot-melted glue creates adhesion with all widely used polymers and metals, protects from moisture, dust and other contaminations. Breakouts have 2, 3, 4, 5 fingers.

Storage: in clean, dry rooms in the supplier's packaging or in cardboard boxes, at a relative humidity of up to 70%, at temperatures from -10°C to +50°C, avoiding sudden temperature changes and exposure to direct sunlight. The distance to any heating sources should be at least 1 meter (without exceeding the maximum storage temperature). Storage conditions should exclude the influence of aggressive medium: acids, alkalis, fuels and lubricants, solvents, etc.

Certification: Not subject to mandatory certification

 Basic technical specifications:

Parameter

Data

Material

Polyolefin

Operational temperatures

from -55 °С to +100 °С

Elongation strength

>13 MPa

Breakdown elongation

> 300%

Breakdown strength after heat aged

> 11 MPa

Breakdown elongation after heat aged

> 230%

Water absorption

0,1%

Volume resistivity

> 1 х 1014 Ω·cm

Dielectric strength

> 20 kV/mm



Specification:

Cores

Size

Number of fingers

Body ID before shrink (mm)

Body ID after shrink (mm)

Body length before shrink (mm)

Finger ID before shrink (mm)

Finger ID after shrink (mm)

HBB 2

28/12 finger 12/3

2

≥28

≤11

65

≥12

≤3

45/18 finger 18/5

2

≥45

≤18

75

≥18

≤5

60/22 finger 25/9

2

≥60

≤22

82

≥25

≤9

95/45 finger 40/14

2

≥95

≤45

84

≥40

≤14

HBB 3

37/15 finger 15/3

3

≥37

≤15

78

≥15

≤3

51/26 finger 24/7

3

≥51

≤26

95

≥24

≤7

70/32 finger 32/10

3

≥70

≤32

115

≥32

≤10

86/45 finger 38/14

3

≥86

≤45

115

≥38

≤14

102/60 finger 48/18

3

≥102

≤60

120

≥48

≤18

130/70 finger 60/25

3

≥130

≤70

130

≥60

≤25

HBB 4

34/20 finger 13/4

4

≥34

≤20

80

≥13

≤4

48/22 finger 18/4

4

≥48

≤22

83

≥18

≤4

62/30 finger 27/7

4

≥62

≤30

103

≥27

≤7

72/36 finger 31/9

4

≥72

≤36

110

≥31

≤9

84/40 finger 39/12

4

≥84

≤40

118

≥39

≤12

HBB 5

35/23 finger 11/5

5

≥35

≤23

80

≥11

≤5

56/29 finger 15/5

5

≥56

≤29

89

≥15

≤5

84/36 finger 26/8

5

≥84

≤36

110

≥26

≤8

95/46 finger 33/11

5

≥95

≤46

116

≥33

≤11
