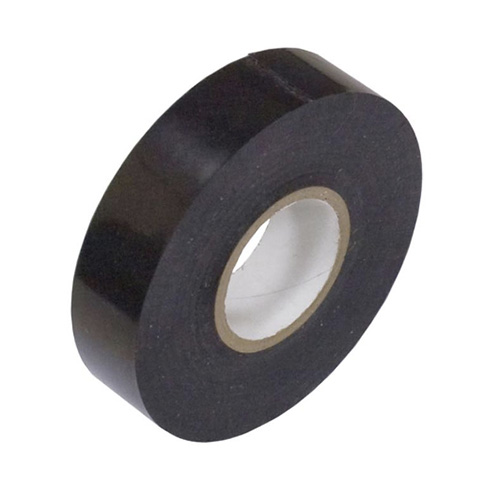

T 33+ High quality PVC tape 33+
Temperature of mount and exploitation: Operations of tape application can be carried out in temperature range -18..+90 °С. In already reeled condition tape can preserve its function in temperature range -40..+105 °С.
Description: Isolation tape for professional usage. Has perfect elastic properties and high adhesion. PVC based.
Color: black
Main properties of tape T 33+:
- Very elastic and has high adhesion, high abrasion resistance, moisture resistance, alkali and acid resistance, changing environmental conditions (including ultraviolet emission);
- Has properties of self-damping and flame retardance;
- Moisture resistant, environmental conditions, ultraviolet emission and chemicals;
- Combination of elastic line and efficient adhesive layer provides moisture-resistant electric and mechanical protection under minimal wrapping volume;
- UV-resistant;
- Self-dumping.
Basic technical specifications:
|
Paramenter |
Unit of measure |
Data |
|
Sizes |
Width, mm х Lenght, m |
19±0,05 х 20±0,2 |
|
Thickness |
mm |
0,19±0,01 |
|
Breakdown strength |
N/10mm |
35 |
|
Maximum elongation |
% |
290 |
|
Adhesive strenght |
N/10mm |
3 |
|
Dielectric strength |
kV/mm |
45 |
|
Temperature of mounting |
°С |
from -18 |
|
Opeartional temperature |
°С |
-45…+105 |
|
Oil and solvent resistance |
|
high |
Certification: Not subject to mandatory certification
