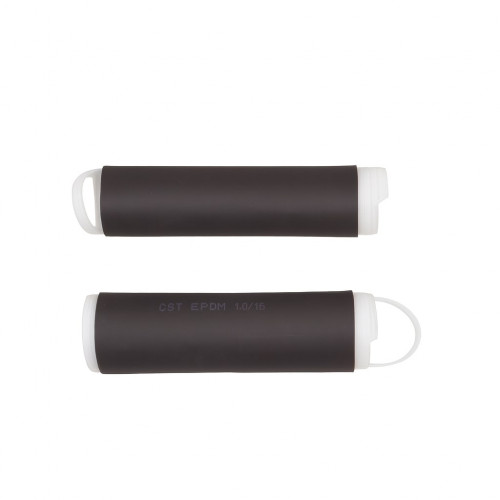

COLD SHRINK TUBES EPDM CSTE
- Material: EPDM resin, ethylene-propylene-diene resin
- Operational temperature: from -55 °C to +150 °C
- Color: black
Short product description: tube EPDM - electro isolation material for reliable, fast, safe mounting, power cables up to 35kV reconstruction and repair. Cold shrink tube CSTE is widely used on the objects with high fire-safety requirements where can’t be used heating or open fire. Used as a part of cold shrink cable accessories for 1-35kV.
Usage:
- Mounting of termination and joint accessories of power cables up to 35kV, repair of flexible shielded cables;
- Mechanical protection and hydro isolation of high voltage connections and contacts with air isolation, for example, lugs of power cables or connected to during connection to busbar.
- Initial isolation of joints of all wires and cables with homogeneous isolation from dielectric (resin and plastic), working under voltage. Underground and submerged cables. For indoor and outdoor works.
- Geometrization and initial electro isolation of big sizes of coaxial cable (feeder) and connectors;
- Reconstruction of cable coating, isolation and sealing of wires and cables, places of connection of contact clips, core end sleeves, lugs, make connectors and places of wire soldering;
Basic technical specifications:
|
Parameter |
Data |
|
Tensile strength |
8,5 MPa |
|
Breakdown elongation |
750% |
|
Breakdown effort |
32,6 kN/mm |
|
Harness (Shore A) |
38 Shore |
|
Dielectric strength |
20 kV/mm |
Certification: Not subject to mandatory certification
Product size:
|
Material |
ID before/after shrink (mm) |
Wall thickness after shrink (mm) |
Length after shrink (mm) |
|
CST EPDM |
20/6 |
2 |
150,450 |
|
CST EPDM |
25/10 |
2,5 |
150,450 |
|
CST EPDM |
32/13 |
3 |
150,450 |
|
CST EPDM |
35/14 |
3 |
150,450 |
|
CST EPDM |
40/16 |
3,5 |
150,450 |
|
CST EPDM |
47/19 |
3,5 |
150,470 |
|
CST EPDM |
53/23 |
3,5 |
150,500 |
|
CST EPDM |
65/23 |
3,5 |
400,500,600 |
|
CST EPDM |
70/28 |
4 |
400,500,600 |
|
CST EPDM |
80/34 |
4 |
400,500,600 |
|
CST EPDM |
104/40 |
4 |
400,500,600 |
