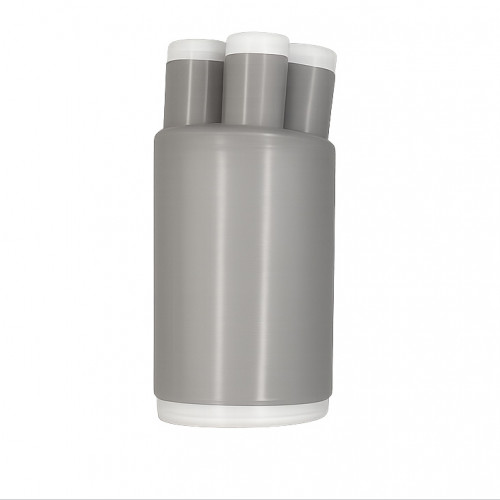

COLD SHRINK BREAKOUT CSB
Material: silicone resin;
Cord material: polypropylene
Operating temperature: from -60 °С to + 200 °С;
Color: grey
Product description: Cold shrink breakout is a part of cold shrink cable accessories. Used for protection of cable core root of 2, 3, 4 and 5 cores termination accessories, for 1-35kV. Has high electric strength, provides protection from moisture and corrosion.
Benefits:
- Provide reliable, fast, safe isolation of the power cables, cable accessories without usage of heating or open fire;
- Allow to carry on works on flammable objects, where forbidden to use open fire;
- Convenient to use, especially in emergency situations;
- High sealing joint. Resilience and pressure power remain during all the breakout operational period. Shrinked breakout creates even radial pressure on cable and repeats its expansion/reduction under high load and temperature difference;
- Moisture resistant, acids and alkali resistant, ozone and UV-resistant;
- Mounting is possible below freezing temperature under condition that before mounting the breakout was stored in warm conditions.
Basic technical specifications:
|
Parameter |
Data |
|
Breakdown elongation |
800% |
|
Operational temperatures |
from -60 °С to +200 °С |
|
Dielectric constant |
2,8 - 3,5 |
|
Dielectric strength |
26 kV/mm |
|
Volume resistivity |
5,0·1015 Ω·cm |
|
Max breakdown strength |
10,0 MPa |
|
Index of breakdown strength |
35 kN/m |
|
Scattering coefficient |
0,001 |
Certification: Not subject to mandatory certification
Specification:
|
Voltage/type |
Body length before shrink (mm) |
Body ID before shrink (mm) |
Finger length before shrink (mm) |
Finger ID before shrink (mm) |
|
1kV/2.0 |
100 |
40 |
40 |
18 |
|
1kV/2.1 |
100 |
40 |
40 |
18 |
|
1kV/2.2 |
100 |
50 |
40 |
24 |
|
1kV/2.3 |
100 |
64 |
40 |
21 |
|
1kV/2.4 |
100 |
70 |
40 |
39 |
|
1kV/З.0 |
115 |
50 |
35 |
18 |
|
1kV/З.1 |
115 |
50 |
35 |
18 |
|
1kV/З.2 |
115 |
64 |
35 |
24 |
|
1kV/З.3 |
115 |
85 |
35 |
31 |
|
1kV/З.4 |
115 |
98 |
35 |
39 |
|
1kV/4.0 |
95 |
60 |
25 |
18 |
|
1kV/4.1 |
95 |
60 |
25 |
18 |
|
1kV/4.2 |
95 |
70 |
25 |
24 |
|
1kV/4.3 |
100 |
80 |
25 |
32 |
|
1kV/4.4 |
100 |
100 |
25 |
39 |
|
1kV/5.0 |
90 |
64 |
25 |
18 |
|
1kV/5.1 |
90 |
64 |
25 |
18 |
|
1kV/5.2 |
90 |
80 |
25 |
24 |
|
1kV/5.3 |
95 |
104 |
25 |
32 |
|
1kV/5.4 |
95 |
110 |
25 |
39 |
|
10kV/З.1 |
115 |
85 |
35 |
31 |
|
10kV/З.2 |
115 |
98 |
35 |
39 |
|
10kV/З.3 |
115 |
108 |
35 |
44 |
|
10kV/З.4 |
115 |
118 |
35 |
52 |
|
З5kV/З.1 |
150 |
98 |
45 |
52 |
|
З5kV/З.2 |
150 |
108 |
45 |
60 |
|
З5kV/З.3 |
150 |
118 |
45 |
69 |
