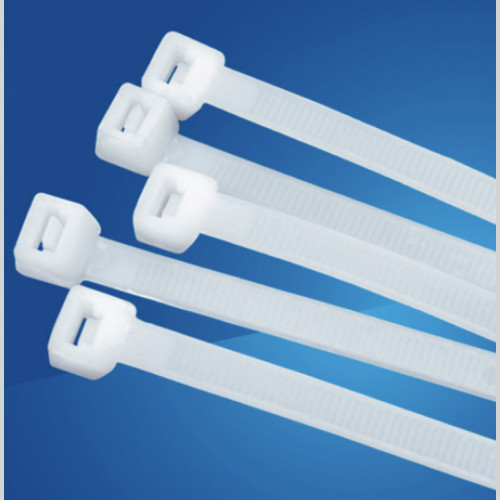

Cable ties
Standard nylon cable ties are fasteners and consumables. They have simple and reliable construction. The ties are for one-time usage. Once they are fastened, they become unlockable and cannot be used.
Application: Used for fastening or connection cables and pipes into bundles. Due to universality are used in various fields of human activity: in construction, medicine, engineering. Have high strength and durability in operation. Can be attached manually or using special gun. Plastic ties efficiently bundle wires, give them attractive look and increase their service life.
Cable ties are standardly produced in two kinds: black and white. Apart from difference in color, black cable ties contain special light-stabilizing additives that significantly increase the resistance of the material to solar ultraviolet which allows them to be used not only indoors, but also outdoors.
Important: quality of nylon cable ties depends on conditions and length of their storage.
Basic technical specifications:
- Material: nylon 6.6 (polyamide 6.6)
- Operation temperature: from -40°С to +85°С
- Storage temperature 23°С under relative moisture 50-60%.
- Assembling temperature: from -5°С to +60°С
- Locking mechanism: undetachable (one-way moving)
- Halogen-free, RoHS compliant
- Main colors: white, black
Operation time of nylon ties is not less than 10 years. Service life is calculated from the date of staring bundle exploitation. The actual service life is not limited by the mentioned operation life and is determined by its technical condition.
Certification: Not subject to mandatory certification.
Cable ties specification:
|
Size |
Length, mm |
Width, mm |
Size of wisp, mm |
Max load, kg |
Quantity per box (bags) |
|
NCT 3х80 |
80 |
2,5 |
2-16 |
8 |
600 |
|
NCT 3х100 |
100 |
2,5 |
2-22 |
8 |
500 |
|
NCT 3х120 |
120 |
2,5 |
2-30 |
8 |
450 |
|
NCT 3х150 |
150 |
2,5 |
2-35 |
8 |
350 |
|
NCT 3х200 |
200 |
2,5 |
3-50 |
8 |
300 |
|
NCT 4х150 |
150 |
3,5 |
3-35 |
18 |
250 |
|
NCT 4х200 |
200 |
3,5 |
3-50 |
18 |
200 |
|
NCT 4х250 |
250 |
3,5 |
3-65 |
18 |
180 |
|
NCT 4х300 |
300 |
3,5 |
3-80 |
18 |
150 |
|
NCT 4х370 |
370 |
3,5 |
3-102 |
18 |
120 |
|
NCT 5х180 |
180 |
4,8 |
3-42 |
22 |
160 |
|
NCT 5х200 |
200 |
4,8 |
3-50 |
22 |
150 |
|
NCT 5х250 |
250 |
4,8 |
3-65 |
22 |
130 |
|
NCT 5х300 |
300 |
4,8 |
3-82 |
22 |
100 |
|
NCT 5х350 |
350 |
4,8 |
3-90 |
22 |
80 |
|
NCT 5х400 |
400 |
4,8 |
3-105 |
22 |
70 |
|
NCT 5х450 |
450 |
4,8 |
3-130 |
22 |
50 |
|
NCT 8х200 |
200 |
7,0 |
3-50 |
55 |
70 |
|
NCT 8х250 |
250 |
7,0 |
4-63 |
55 |
50 |
|
NCT 8х300 |
300 |
7,0 |
4-82 |
55 |
50 |
|
NCT 8х350 |
350 |
7,9 |
4-90 |
55 |
40 |
|
NCT 8х400 |
400 |
7,9 |
4-105 |
55 |
40 |
|
NCT 8х450 |
450 |
7,9 |
4-118 |
55 |
35 |
|
NCT 8х500 |
500 |
7,9 |
4-150 |
55 |
30 |
|
NCT 9х550 |
550 |
9,0 |
8-160 |
80 |
20 |
|
NCT 9х650 |
650 |
9,0 |
8-190 |
80 |
15 |
|
NCT 9х760 |
760 |
9,0 |
10-225 |
80 |
15 |
|
NCT 9х920 |
920 |
9,0 |
10-265 |
80 |
10 |
|
NCT 9х1020 |
1020 |
9,0 |
10-295 |
80 |
10 |
|
NCT 10х450 |
450 |
10,0 |
10-125 |
91 |
25 |
|
NCT 10х600 |
600 |
10,0 |
12-150 |
91 |
20 |
|
NCT 10х700 |
700 |
10,0 |
12-175 |
91 |
20 |
